| Model |
880GITX-A-E |
| Chipset |
AMD 880G + SB850 |
| CPU Socket |
AM3 / AM2+ / AM2 |
| Dimensions |
6.7in x 6.7in - 170mm x 170mm |
| Form Factor |
Mini-ITX |
| Memory Size |
Up to 8GB |
| Memory Slots |
2 x 240 pin DDR3-1333 DIMM |
| Memory Type |
DDR3 |
| Onboard Audio |
1 HD Audio Port (Line-in, Line-out, Mic-in), 1 Digital S/PDIF output (optical) |
| Onboard LAN |
10/100/1000 Mbps Ethernet, Integrated 802.11n/b/g WiFi |
| Onboard Video |
ATI Radeon¢â HD 4250 Series GPU |
| Package Contents |
1 x 880GITX-A-E
2 x SATA cables
1 x DVI-to-VGA adapter
2 x WiFi antennas |
| PCI |
Mini PCI Express (occupied by WiFi module) |
| PCI Express x1 |
PCI Express x1 |
| RAID |
0, 1, 0+1, 5 |
| SATA |
4x SATA 6.0 Gb/s |
| USB |
2 x USB 3.0 (back panel), 8 x USB2.0 (4 on back panel, 4 via pin header) |
| Video Ports |
HDMI + DVI (VGA with included DVI-to-VGA adapter) |
| Warranty |
1-Year Standard Warranty; 2-Year Extended Warranty |

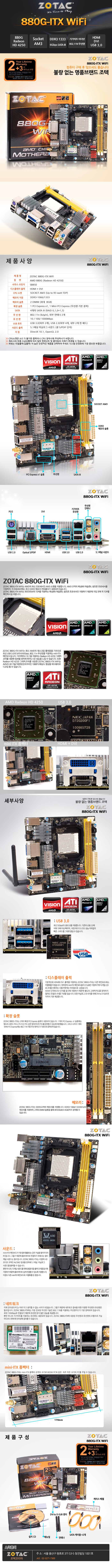

Product Details File (PDF)
